Product Description
Description

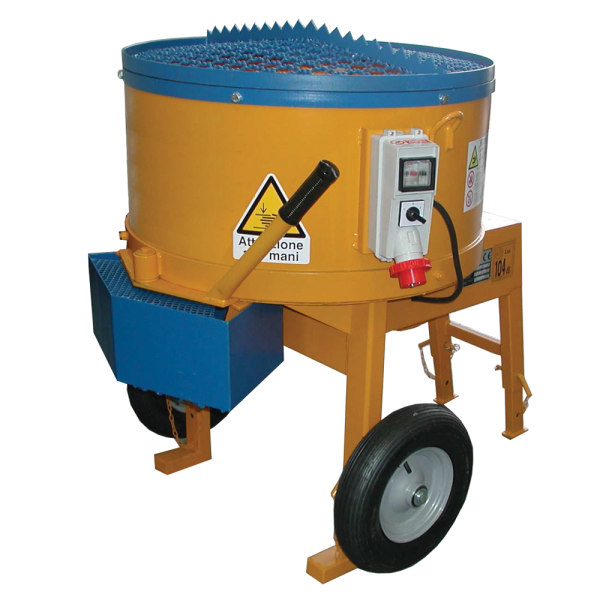

Pan type models have been selected for laboratory use, to prepare concrete specimens and samples. They assure the best uniformity and efficient mixing. 55-C0199/9A model is supplied complete with additional interchangeable mixing paddle, particularly suitable for low slump concrete, wheels and drawbar.
55-C0199/11 and 55-C0199/20 models can be completed with optional wheels and drawbar. See accessories.
The drum type model 55-C0196/2 is more suitable for field use to prepare low-medium strength specimens.
55-C0199/9A
Pan type mixer. Pan capacity 130l, mixing capacity 90l. Power 2 kW. 230V/50Hz/1ph
55-C0199/11
Pan type mixer, 200 l pan cap., 110 l mixing cap. 380-400 V, 50 Hz, 3 ph.
55-C0199/20
Pan type mixer 300 l pan cap., 200 l mixing cap. 380-400 V, 50 Hz, 3 ph.
55-C0196/2
Drum type concrete mixer, 130 l pan cap. 96 l mixing cap. 230V, 50Hz, 1F
Technical Specs
PAN TYPE MODELS
| Model 55- | C0199/9A |
C0199/11 |
C0199/20 |
| Pan cap. (l) | 130 | 200 | 300 |
| Mixing cap. (l) | 90 | 110-120 | 160-200 |
| Power (kW) | 2 | 3 | 5.5 |
| Overall dimensions (lxdxh) mm | 850x800x1250 | 1100x850x1200 | 1250x1200x1300 |
| Weight approx. (kg) | 100 | 260 | 340 |
DRUM TYPE MODEL
| Model | 55-C0196/2 |
| Pan cap. (l) | 130 |
| Mixing cap. (l) | 96 |
| Power (W) | 370 |
| Overall dimensions (lxdxh) cm |
120x70x130 |
| Weight approx. (kg) | 60 |
Accessories
55-C0199/R1
Wheels, 4” size and drawbar for 55-C0199/11 and 55-C0199/20 mixers.
