Product Description
Features
- legal for trade use
- large, easy to read, backlit LCD display (16.5 mm height)
- tuning fork frequency sensing weighing technology
- choice of weighing units; g, ct, oz, lb, ozt, dwt, GN, PCS, %
- counting function
- percentage weighing function
- glass windshield prevents disturbance created from air movement where high precision weighing is required (models SDAB323 & SDAB623)
- RS232C output as standard for straight forward connectivity to peripheral devices such as PCs or printers
- full tare weighing function
Description
High precision, basic applications, affordable budget

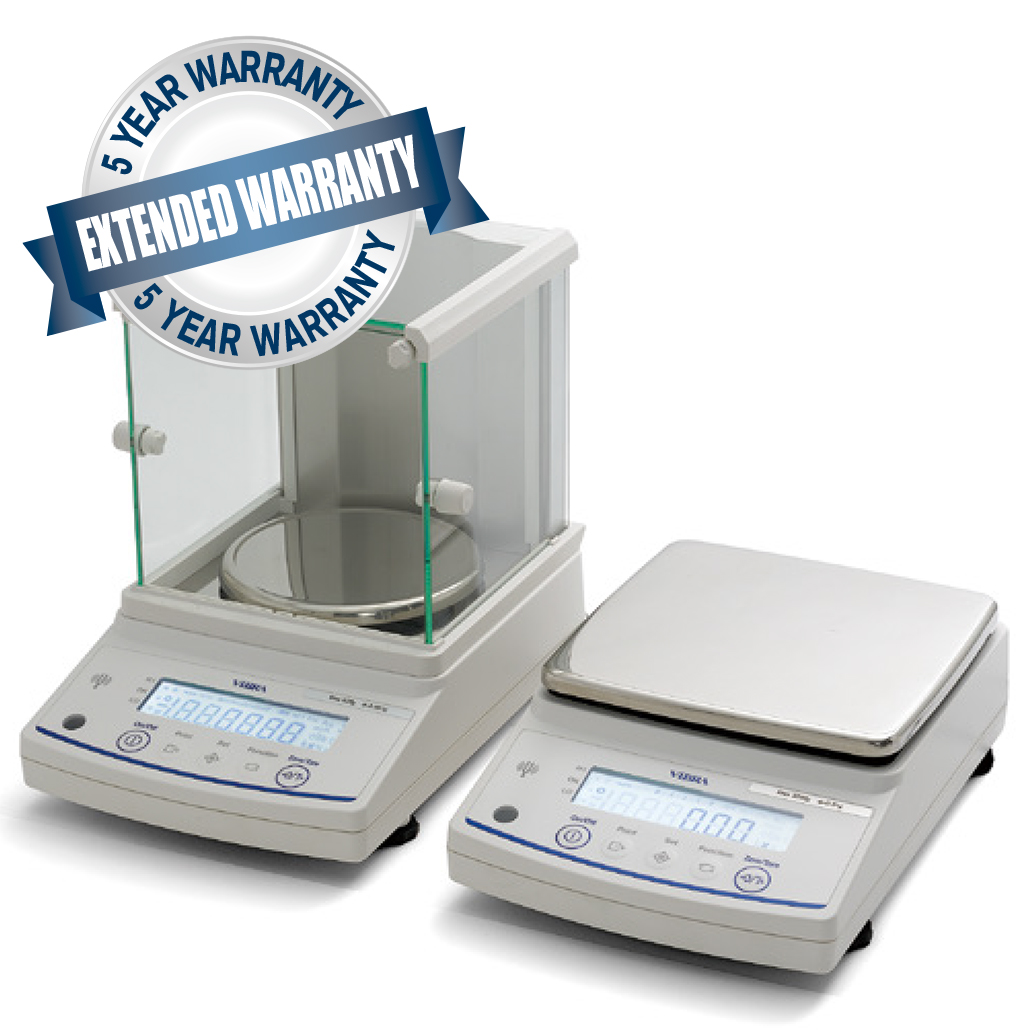

VIBRA AB series provides basic applications which are indispensable in daily work in laboratory and industrial lines. In any applications highly precise measurement is promised. VIBRA AB series is the best affordable entrance into high-grade weighing solution.
User-friendly : Key to efficient weighing operation
VIBRA AB series is equipped with features to make routine measurement works easy and comfortable. Large back-lit LCD is easy to read in any locations. Glass windshield prevents air turblence from disturbing weighing operation in tough environment.
Highly visible, LCD display with back light
AB series is equipped with highly visible LCD display with bright and white backlit.
Robust housing, large weighing platform
AB series has robust housing which is durable in tough condition. In combination with large weighing platform, AB series can provide highly precise weighing even in harsh environment.
Connection to outside devices
VIBRA AB series has RS232C output as standard. When you need to print the weighing data and/or store it in outside devices, you can easily connect VIBRA AB seriess to PC, printer, etc… through RS232C output.
Technical Specifications
| VIBRA Model |
AB323 |
AB623 | AB1202 | AB3202 |
AB12001 |
| Capacity |
320g |
620g | 1,200g | 3,200g |
12,000g |
| Readability |
0.001g |
0.001g | 0.01g | 0.01g |
0.1g |
| Repeatability |
0.001g |
0.001g | 0.01g | 0.01g |
0.1g |
| Linearity |
±0.003g |
±0.004g | ±0.02g | ±0.03g |
±0.2g |
| Stabilization Time |
3.0 sec. |
3.5 sec. | 3.0 sec. | 3.5 sec. |
3.0 sec |
| Pan Size |
140mm dia |
190 x 190mm |
|||
| Dimensions (WDH) |
293 x 202 x 206mm (including Windshield) |
293 x 196 x 89mm |
|||
Ordering information
| 11-W1101.LOC | Balance, VIBRA AB-323, 320 x 0.001g |
| 11-W1102.LOC | Balance, VIBRA AB-623, 620 X 0.001g |
| 11-W1103.LOC | Balance, VIBRA AB-1202, 1200 X 0.01g |
| 11-W1104.LOC | Balance, VIBRA AB-3202, 3200 x 0.01g |
| 11-W1105.LOC | Balance, VIBRA AB-12001, 12kg x 0.1g |
