Product Description
Description

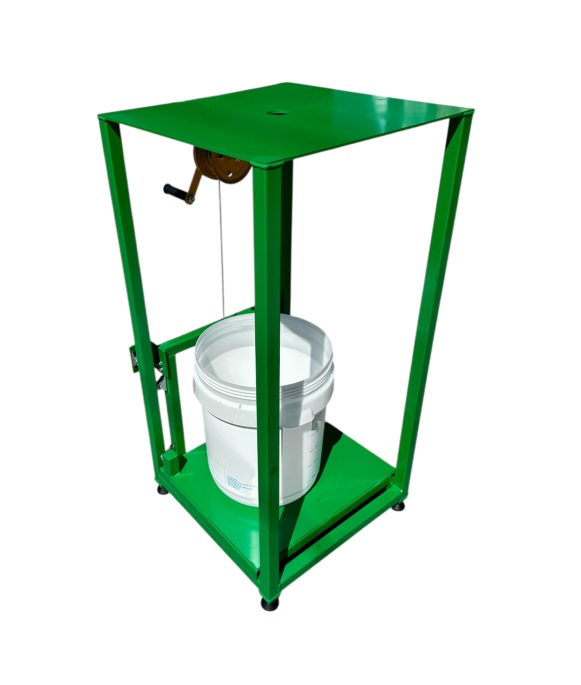

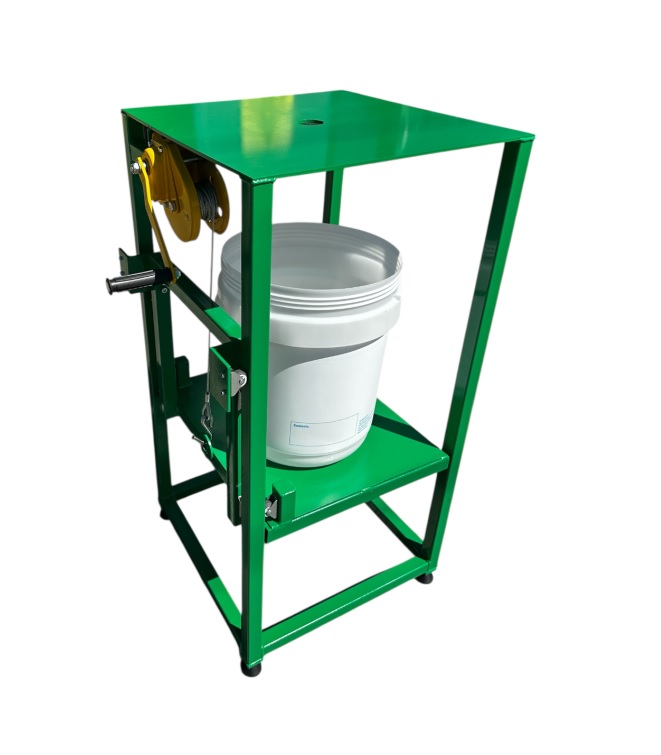

The Specific Gravity Frame is a purpose-built robust frame designed to support an electronic balance and allow for easy measurements in both air and water.
The frame is used with a suitable electronic balance with an under-weighing facility for the specific gravity determination of compacted asphalt specimens, hardened concrete and aggregates. It is ideal for soil particle density testing and rock correction work.

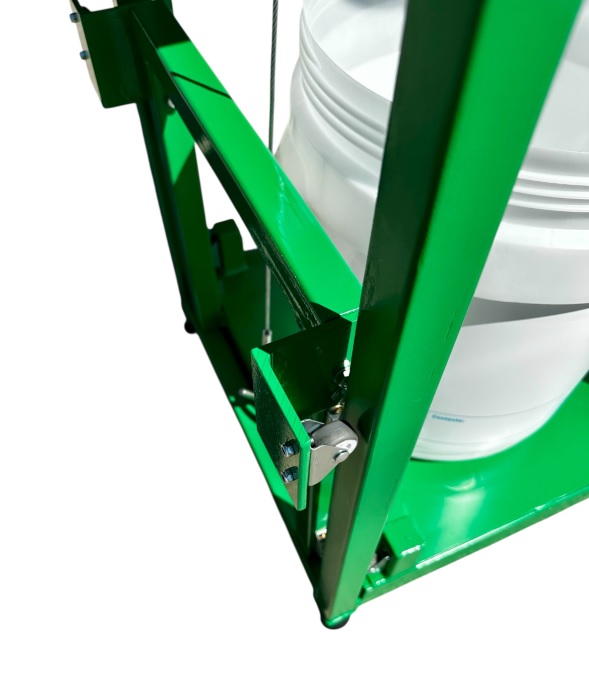

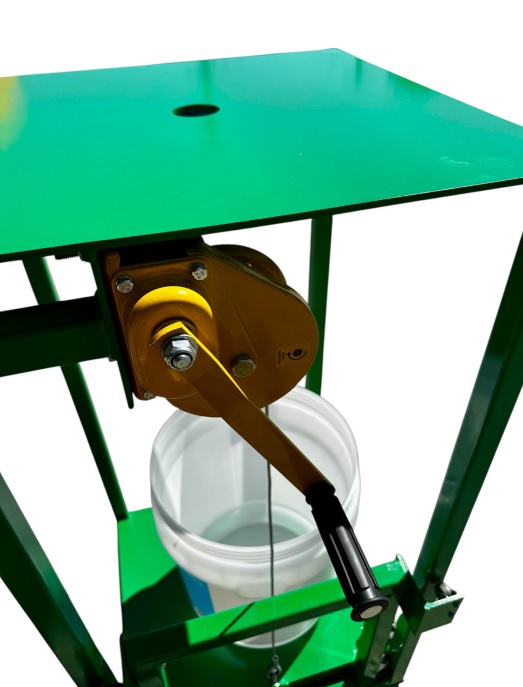

Incorporating a load brake winch, the lower part of the frame has a moving platform for raising and lowering of the water container, allowing the test specimens to be weighted in both air and water.
The frame should be completed with a suitable cradle to hold concrete specimens, or with a basket for use with asphalt specimens, rocks and aggregates.
The frame is supplied complete with plastic water container. Other types of water tanks available on request.
Designed and made in Australia by Geo-Con Products.
Specifications
- Top Platform: 45 x 45cm
- Overall Height: 90cm
Ordering Information
| 11-D0612/B.CON | Geo-Con Specific Gravity Frame |
Accessories
| 11-D0612/PP.IMP | Geo-Con Specific Gravity Basket D250 x H250 x 2mm WWM approx. |
